Product Details

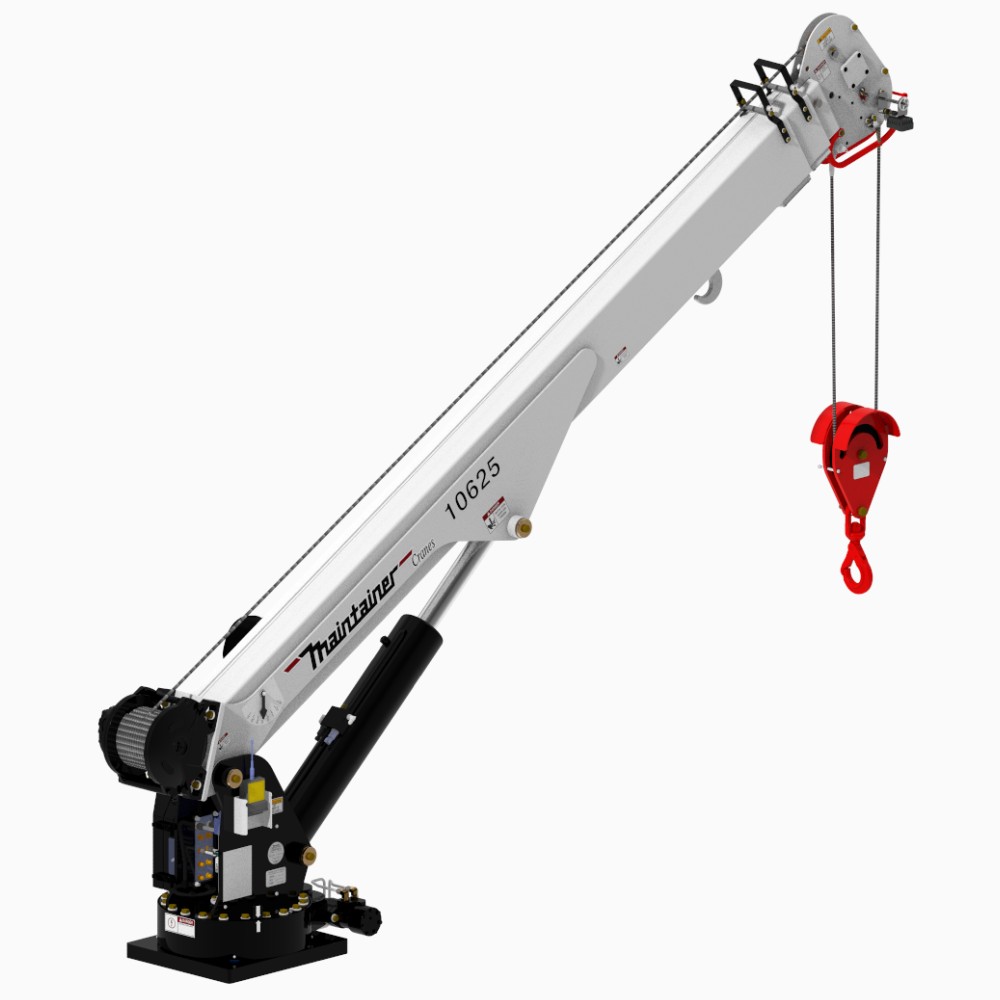

The 10625 Hydraulic Crane is engineered to answer the call when precision and power are paramount. delivering a commanding 75,000 ft*lb rating, this unit gives you the strength to lift 10,000 lbs at 6-foot or handle 3,076 lbs at a full 25-foot horizontal reach. It puts total control in your hands with Advanced Crane Control 2.1 and a responsive wireless pistol-grip remote. With integrated LED boom tip lighting and a rugged hexagonal boom, the 10625 ensures you have the visibility and durability to tackle any challenge the job site throws your way.
- Hexagonal boom
- Boom mounted planetary winch
- Counterbalance valves on extend & lift cylinders
- (2) LED boom tip lights
- Pistol grip wireless remote
- 35’ backup cable
- Toggle switch controls
- Large LCD screen
- Vibration alerts
- Charging docking station and spare battery
- Engine start/stop, speed control, and air compressor controls
- Load Monitoring with live weight displayed
| Crane Rating: | 75,000 ft*lb. |
| Retracted Boom Length: | 12’ from center line of crane |
| Boom Extension: | Two stage 100% Hydraulic |
| Max Horizontal Reach: | 25’ |
| Max Vertical Lift: | 27’ |
| Lifting Capacity: | 1,000 lbs @ 6’
3,076lbs @ 25’ |
| Boom Elevation: | -13° +78° |
| Stowed Height: | 3’ 6” |
| Mounting Space Required: | 23” x 30” |
| Bolt Hole Pattern: | (8) 1.25”-7UNC gr 8 bolts, custom pattern |
| Approximate Crane Weight: | 2,436 lbs. |
| Rotation | 400° |
| Winch: Rope Length: | 140’ |
| Winch: Rope Diameter: | 3/8” |
| Winch: Line Pull Speed: | 55 ft/min |
| Winch: Max Single Part Line: | 5,000 |
| Winch: Max 2 Part Line: | 10,000 |
| Hydraulic Requirement | 11 GPM @ 3,000 psi |
| Min Chassis GVWR: | 26,000 lbs |
- Tire jib
- Umbrella Holder
- Personnel Tie-Off
- Crane Weld Down Mount Plate
