Product Details

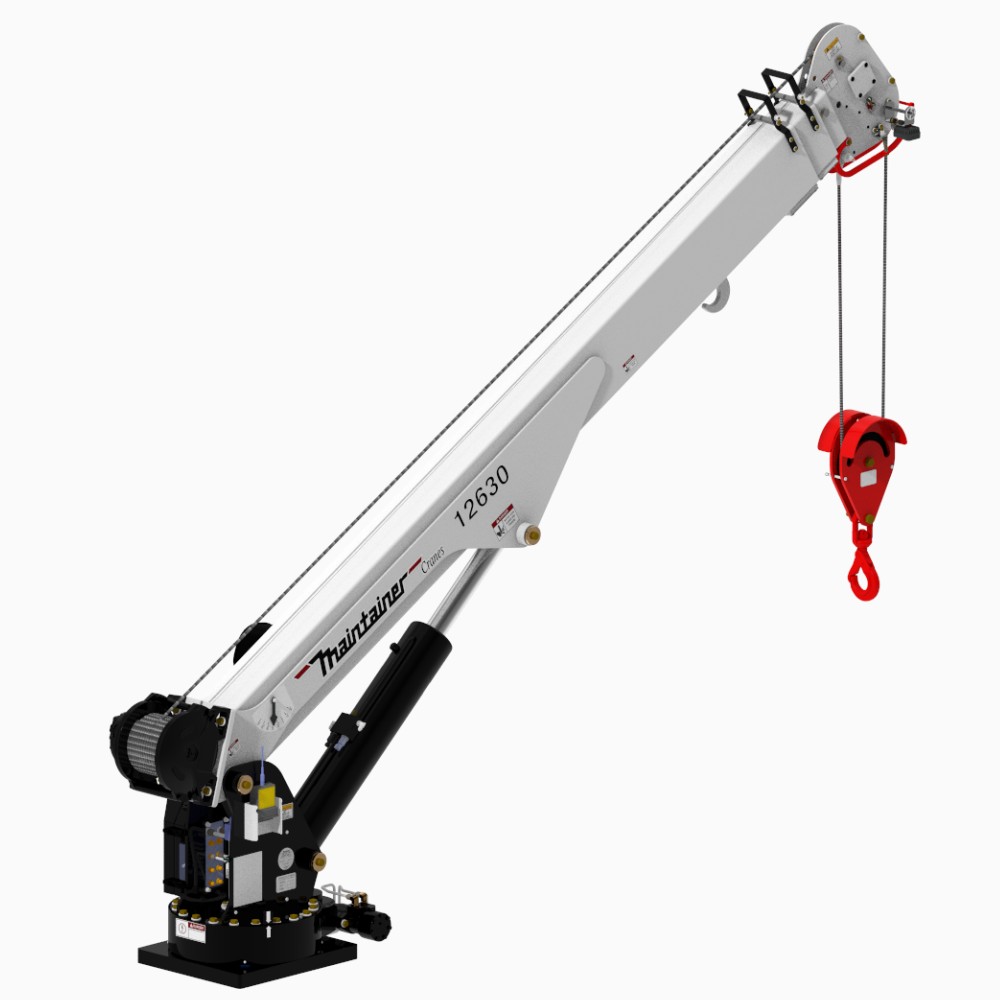

The 12630 Hydraulic Crane is built for one purpose: to dominate the toughest lifts. With an 85,000 ft*lb rating, it delivers a massive 12,000 lb capacity at 6 feet and unwavering stability for up to 2,893lbs at its 30-foot max extension. We’ve paired this brute strength with the intelligence of Advanced Crane Control 2.1 and a wireless pistol-grip remote, giving you pinpoint accuracy on every job. Safe, powerful, and built to last with a hexagonal boom and LED lighting, the 12030 is ready to work as hard as you do.
- Hexagonal boom
- Boom mounted planetary winch
- Counterbalance valves on extend & lift cylinders
- (2) LED boom tip lights
- Pistol grip wireless remote
- 35’ backup cable
- Toggle switch controls
- Large LCD screen
- Vibration alerts
- Charging docking station and spare battery
- Engine start/stop, speed control, and air compressor controls
- Load Monitoring with live weight displayed
| Crane Rating: | 85,000 ft*lb. |
| Retracted Boom Length: | 13’ from center line of crane |
| Boom Extension: | Two stage 100% Hydraulic |
| Max Horizontal Reach: | 30’ |
| Max Vertical Lift: | 32’ |
| Lifting Capacity: | 12,000 lbs @ 6’
2,893 lbs @ 30’ |
| Boom Elevation: | -13° +78° |
| Stowed Height: | 3’ 6” |
| Mounting Space Required: | 23” x 30” |
| Bolt Hole Pattern: | (8) 1.25”-7UNC gr 8 bolts, custom pattern |
| Approximate Crane Weight: | 2,650 lbs. |
| Rotation | 400° |
| Winch: Rope Length: | 120’ |
| Winch: Rope Diameter: | 7/16” |
| Winch: Line Pull Speed: | 55 ft/min |
| Winch: Max Single Part Line: | 6,000 |
| Winch: Max 2 Part Line: | 12,000 |
| Hydraulic Requirement | 11 GPM @ 3,000 psi |
| Min Chassis GVWR: | 26,000 lbs |
- Tire jib
- Umbrella Holder
- Personnel Tie-Off
- Crane Weld Down Mount Plate
