Product Details

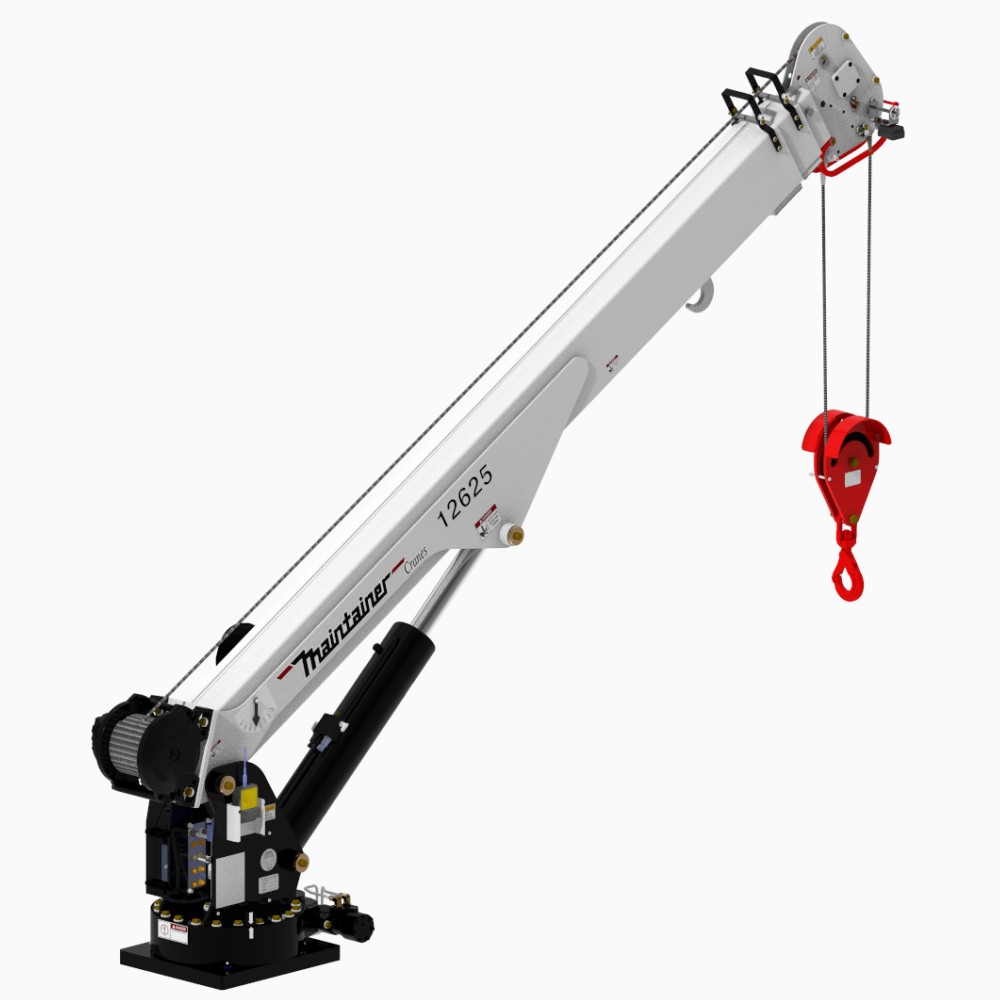

When the job demands serious lifting power, the 12625 answers with an 85,000 ft*lb crane rating and a rugged hexagonal boom design. Engineered for both brute strength and pinpoint accuracy, this crane delivers a massive 12,000 lb max lift at 6 feet and sustains 3,486 lbs even at its full 25-foot extension. The 12625 features Advanced Crane Control 2.1 and a pistol-grip wireless remote, putting total command in the palm of your hand. With safety enhancements like LED boom tip lighting and counterbalance valves, you can work confidently day or night. It’s not just a crane; it’s your most trusted partner in the field.
- Hexagonal boom
- Boom mounted planetary winch
- Counterbalance valves on extend & lift cylinders
- (2) LED boom tip lights
- Pistol grip wireless remote
- 35’ backup cable
- Toggle switch controls
- Large LCD screen
- Vibration alerts
- Charging docking station and spare battery
- Engine start/stop, speed control, and air compressor controls
- Load Monitoring with live weight displayed
| Crane Rating: | 85,000 ft*lb. |
| Retracted Boom Length: | 12’ from center line of crane |
| Boom Extension: | Two stage 100% Hydraulic |
| Max Horizontal Reach: | 25’ |
| Max Vertical Lift: | 27’ |
| Lifting Capacity: | 12,000 lbs @ 6’
3,486 lbs @ 25’ |
| Boom Elevation: | -13° +78° |
| Stowed Height: | 3’ 6” |
| Mounting Space Required: | 23” x 30” |
| Bolt Hole Pattern: | (8) 1.25”-7UNC gr 8 bolts, custom pattern |
| Approximate Crane Weight: | 2,436 lbs. |
| Rotation | 400° |
| Winch: Rope Length: | 120’ |
| Winch: Rope Diameter: | 7/16” |
| Winch: Line Pull Speed: | 55 ft/min |
| Winch: Max Single Part Line: | 6,000 |
| Winch: Max 2 Part Line: | 12,000 |
| Hydraulic Requirement | 11 GPM @ 3,000 psi |
| Min Chassis GVWR: | 26,000 lbs |
- Tire jib
- Umbrella Holder
- Personnel Tie-Off
- Crane Weld Down Mount Plate
