H10030 Crane

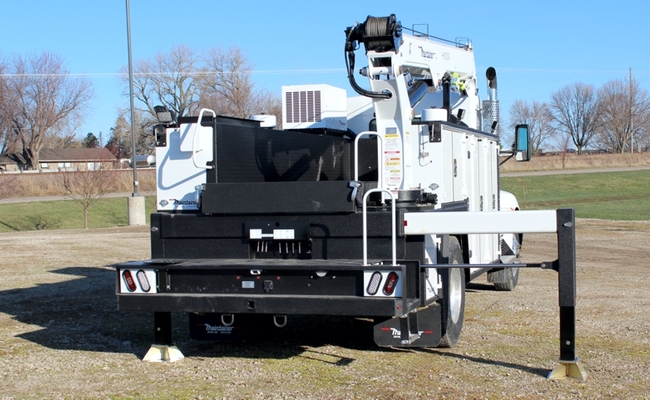

JJ240_crane_lifted_2_thumbnail.jpgMaintainer continues to expand crane options to its customers with the H10030 telescopic crane. The H10030 has a maximum lift capacity of 10,000 pounds, has a 60,000 foot*pound crane rating and a boom-mounted planetary winch.

The hexagonal boom sections on Maintainer cranes are self-aligning, have improved strength to weight ratio, and have easily-serviced wear pads. Nitrided cylinder rods have improved wear and impact resistance, improved corrosion resistance, and an improved seal life. The hydraulic hoses are protected from harsh working environments. Even the crane and outrigger valves are protected under the truck body. The initial crane inspection is performed at the factory for turnkey performance – your crane is ready to go to work when your truck is delivered!


  • 10,000 lb. max. capacity
  • 60,000 ft-lb capacity
  • 30’ hydraulic reach
  • 2390 lbs. (1084 KGS)
  • Total operational range 91o
  • (-13 to +78)
  • 140’ of 3/8” diameter wire rope
  • 615o of rotation
  • 22” x 22” Mounting Space Required
  • Mounting requires (8) 7/8-9 (GRD-8) bolts
  • Hydraulic Requirements:
  • 10-12 GPM@3000 PSI


  • Advanced Crane Control 2.1 - standard
  • Tall and Short Tower Configurations
  • Wireless Remote Control - standard
  • Hexagonal Boom
  • Dual Part Line (Single Part Capable)
  • User-friendly Load Block storage
  • Live weight display on remote
  • Boom-mounted planetary winch
  • Double Sheave Design
  • Closed-center/Load-sensing Hydraulic System
  • OSHA 1910.180 / ANSI B30.5 Compliant


  • Boom tip LED flood lights
  • Boom tip Umbrella Mounts
  • Open-center hydraulic system
  • Advanced Crane Control 2.2
