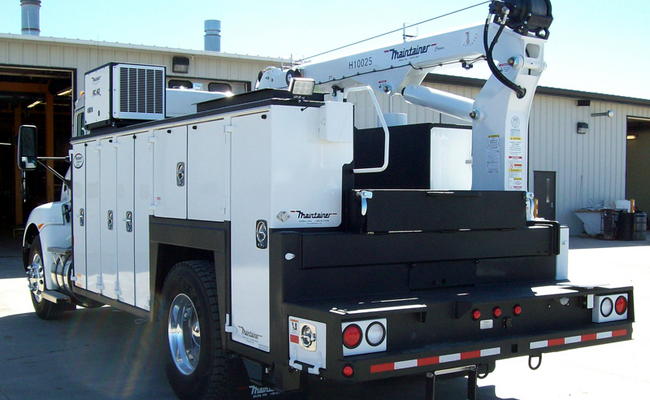

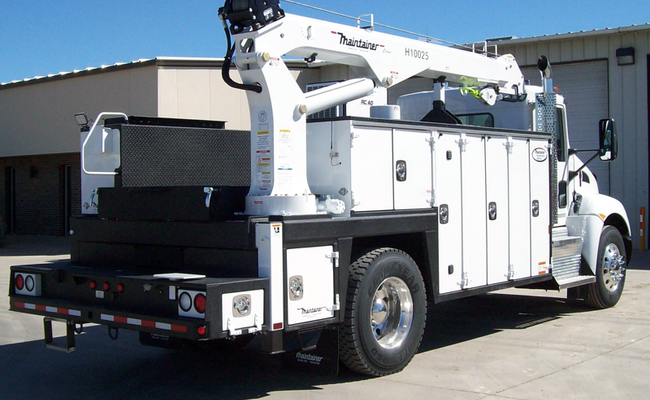

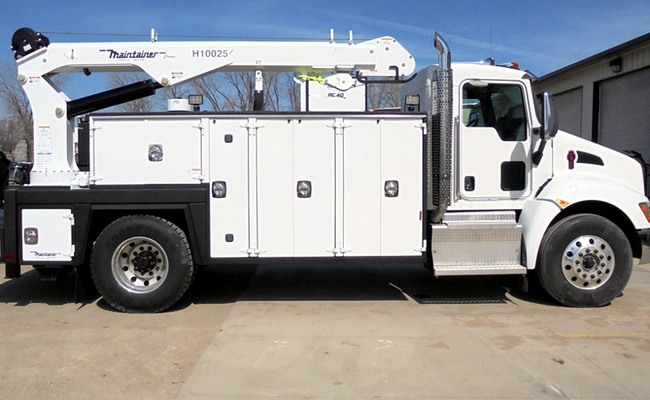

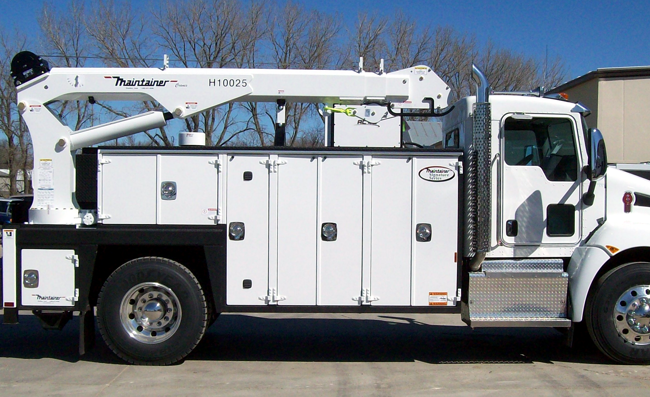

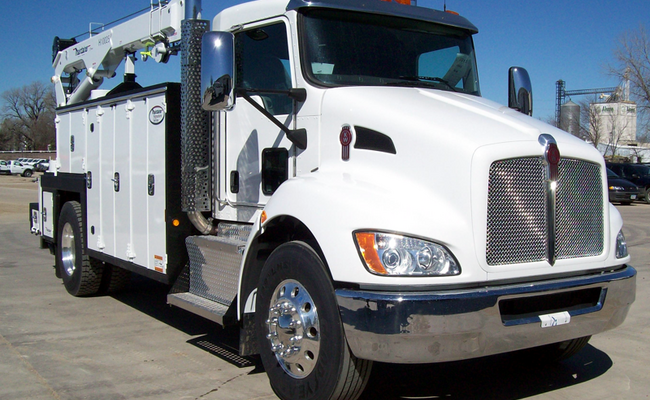

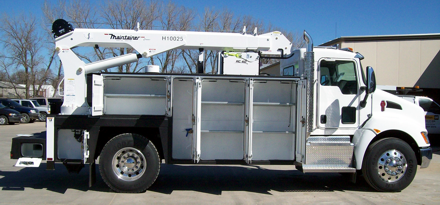

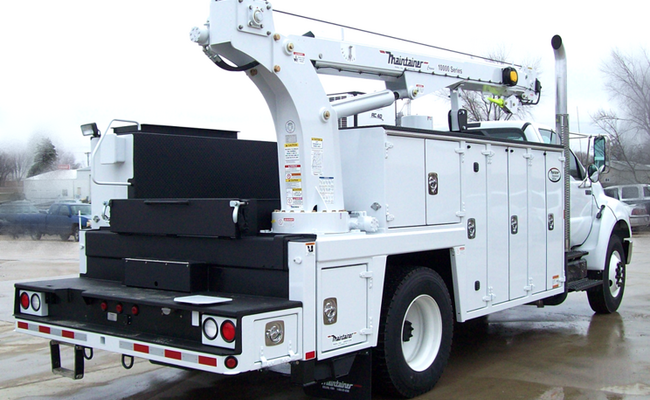

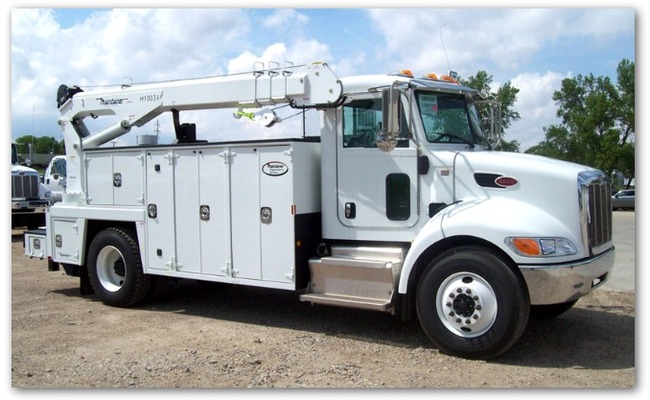

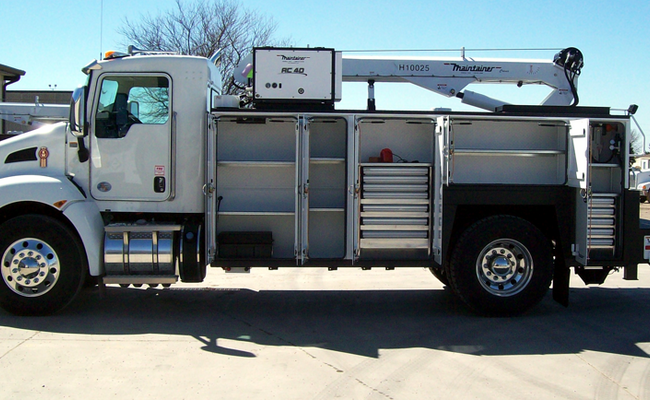

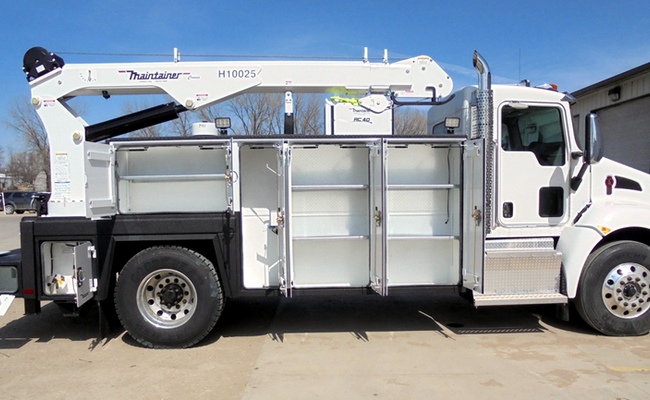

MECHANICS CRANE BODY
Signature Series 3 available in 14' body length
Standard Features:
- Body, crane tower, outriggers rated at 90,000 ft*lb. moment rating
- Note: For tall tower H120025 & H140025 cranes.
- Body Substructure: frame construction of 8" main sills with 4" cross members and structural tubing
- 12 gauge A60 galvannealed steel compartment construction
- 49" wide center deck width
- 62" tall x 23" deep compartments
- 219 cu. ft. of storage capacity
- 26" rear workbench bumper with lighted recessed step
- Ribbed compartment floors
- (6) flush mounted D-ring tie downs
- 10" slam-latch aluminum tailgate
- 3/16" single piece recessed aluminum doors
- D-ring stainless steel compression door latches
- Gas spring door holders
- Aluminum drip rail above compartments
- 250 lb. capacity adjustable aluminum shelving
- 3-point center deck access with safety yellow handles
- PPG etch-primed, urethane-primed and painted
- Undercoating
- Master lock system
- 97 db backup alarm
- LED marker and tail lights
- I.C.C. safety kit (2.5 lb. ABC fire extinguisher & hazard reflectors)
- CAN Control System standard with H6520 cranes and larger
- Patented Pressurized Storage System (PSS)
- Rear strobe lights
Available Options:
- DuaLock drawers and Bolt Bins
- Vises and vise mounting plates
- Interior LED strip lighting
- Exterior LED flood lights
- Gas/diesel driven welders
- Light bars
- Wheel flares
- Safety strobe lighting
- Slide top center deck covers
- Protective spray covering packages
- Hydraulic driven air compressors
- All-in-one APU units
- Other body lengths available
