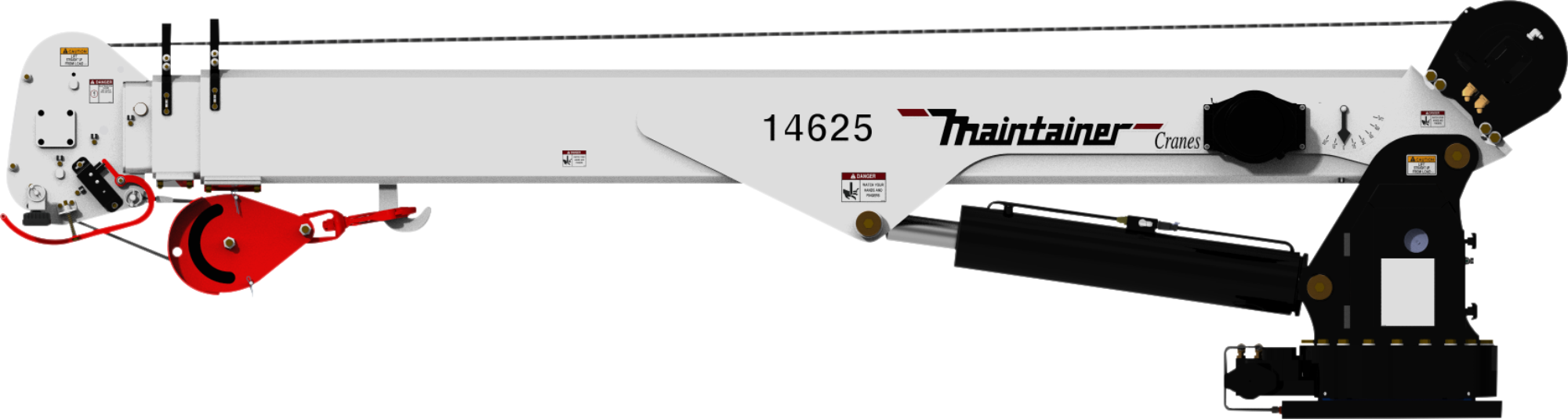

Model 14625
Maintainer cranes are designed to perform reliably even in the harshest conditions
Featuring: LED boom-tip floodlights, an enclosed sealed rotation bearing, a low-profile boom tip sheave head, boom tip accessory mounting plates, a hinged protective valve cover, enhanced protective valve coatings for corrosion resistance, sealed rubber-booted solenoid push buttons, a sealed crane turret, and more. These advanced features ensure durability and smooth operation for your toughest jobs.
Standard Features:
- 14,000 lb. lift capacity
- max. reach 25'
- Hexagonal boom
- Boom mounted planetary winch
- Counterbalance valves on extend & lift cylinders
- (2) LED boom tip lights
►Advanced Crane Control 2.1
STANDARD on all hydraulic cranes 65620 and larger
Pistol Grip Wireless Remote
STANDARD on all hydraulic cranes
- 35' backup cable
- Toggle switch controls
- Large LED display screen
- Vibration alerts
- Charging docking station with spare battery
- Engine start/stop, speed control, and a/c controls
SPECIFICATIONS |
Crane Rating |
90,000 ft-lb |
Retracted boom length |
12' from center line of crane |
Boom Extension |
Two stage 100% hydraulic |
Maximum horizontal reach |
25' |
Maximum vertical lift |
27' |

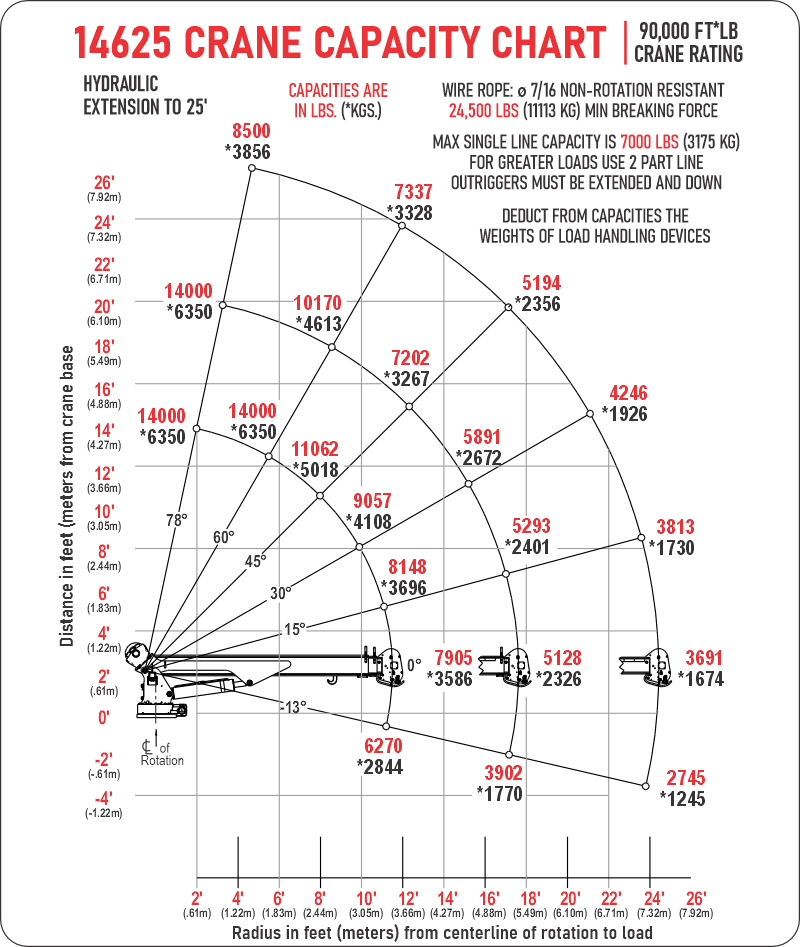

Lifting capacity |
14,000 lbs @ 6'3,691 lbs @ 24' |
Boom elevation |
-13° to 78° |
Stowed height |
3' 8" |
Mounting space required |
23" x 30" |
Bolt hole pattern |
14.75" x 14.75" |
Approximate crane weight |
2,358 lbs |
Winch: Rope diameter |
Ø 7/16" x 140' |
Winch: Line pull speed |
55' ft/min |
Winch: Maximum single part line |
7,000 lbs |
Winch: Maximum double part line |
14,000 lbs |
Rotation |
400° |
Power supply req. PTO & pump |
11 GPM @ 3,000 psi |
Min. chassis GVWR |
33,000# |
