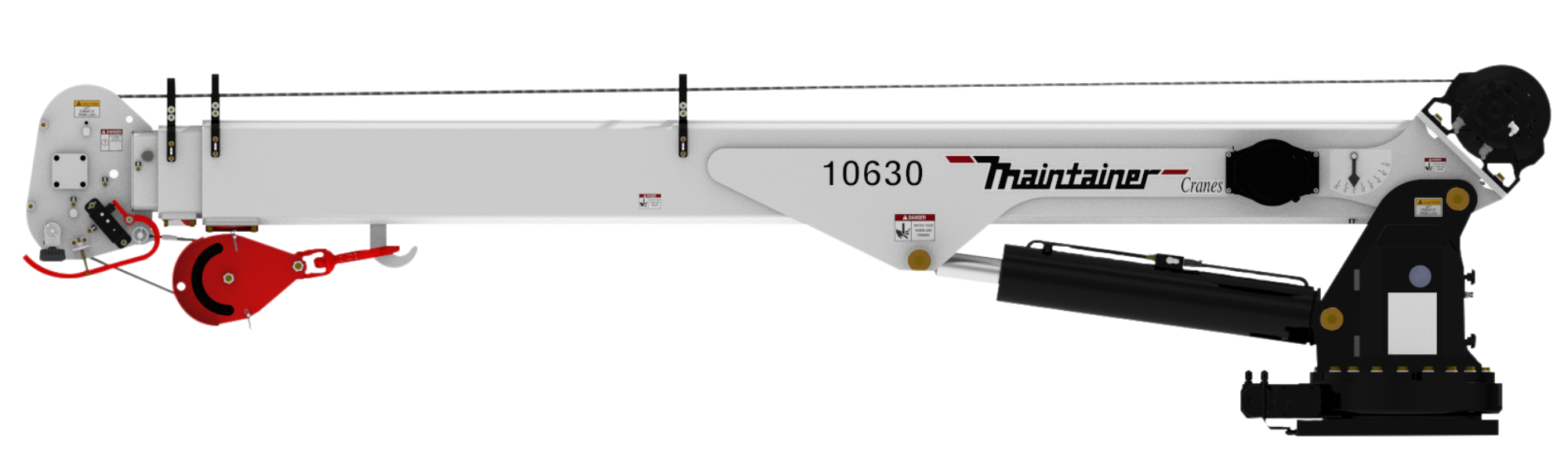

Models 10625 & 10630
Maintainer cranes are designed to perform reliably even in the harshest conditions
Featuring: LED boom-tip floodlights, an enclosed sealed rotation bearing, a low-profile boom tip sheave head, boom tip accessory mounting plates, a hinged protective valve cover, enhanced protective valve coatings for corrosion resistance, sealed rubber-booted solenoid push buttons, a sealed crane turret, and more. These advanced features ensure durability and smooth operation for your toughest jobs.
Standard Features:
- 10,000 lb. lift capacity
- (10625) max. reach 25' - (10630) max. reach 30'
- Hexagonal boom
- Boom mounted planetary winch
- Counterbalance valves on extend & lift cylinders
- (2) LED boom tip lights
►Advanced Crane Control 2.1
STANDARD on all hydraulic cranes 65620 and larger
Pistol Grip Wireless Remote
STANDARD on all hydraulic cranes
- 35' backup cable
- Toggle switch controls
- Large LED display screen
- Vibration alerts
- Charging docking station with spare battery
- Engine start/stop, speed control, and a/c controls
SPECIFICATIONS |
Crane Rating |
75,000 ft-lb |
Retracted boom length |
10625: 10' from center line of crane10630: 13' from center line of crane |
Boom Extension |
Two stage 100% hydraulic |
Maximum horizontal reach |
10625: 24'10630: 30' |
Maximum vertical lift |
10625: 25'10630: 30' |

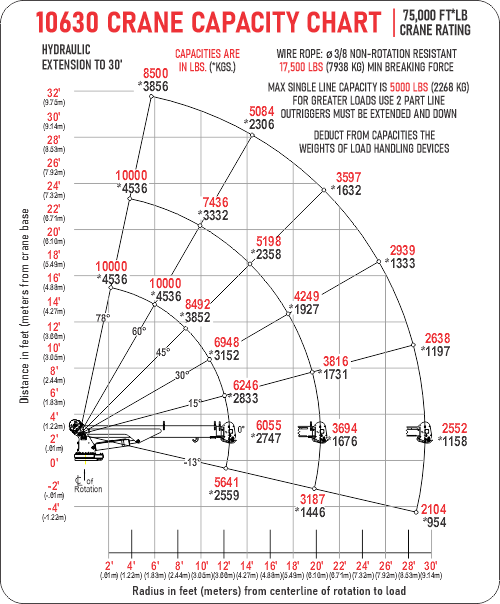

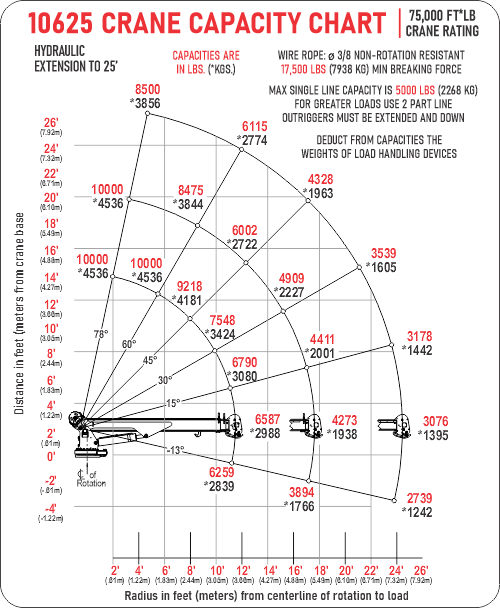

Lifting capacity |
10,000 lbs @ 6'10625: 3,076 lbs @ 25'10630: 2,552 lbs @ 30' |
Boom elevation |
-13° to 78° |
Stowed height |
3' 6" |
Mounting space required |
23" x 30" |
Bolt hole pattern |
14.75" x 14.75" |
Approximate crane weight |
10625: 2,436 lbs10630: 2,650 lbs |
Winch: Rope diameter |
Ø 3/8" x 140' |
Winch: Line pull speed |
55' ft/min |
Winch: Maximum single part line |
5,000 lbs |
Winch: Maximum double part line |
10,000 lbs |
Rotation |
400° |
Power supply req. PTO & pump |
11 GPM @ 3,000 psi |
Min chassis GVWR |
26,000# |
